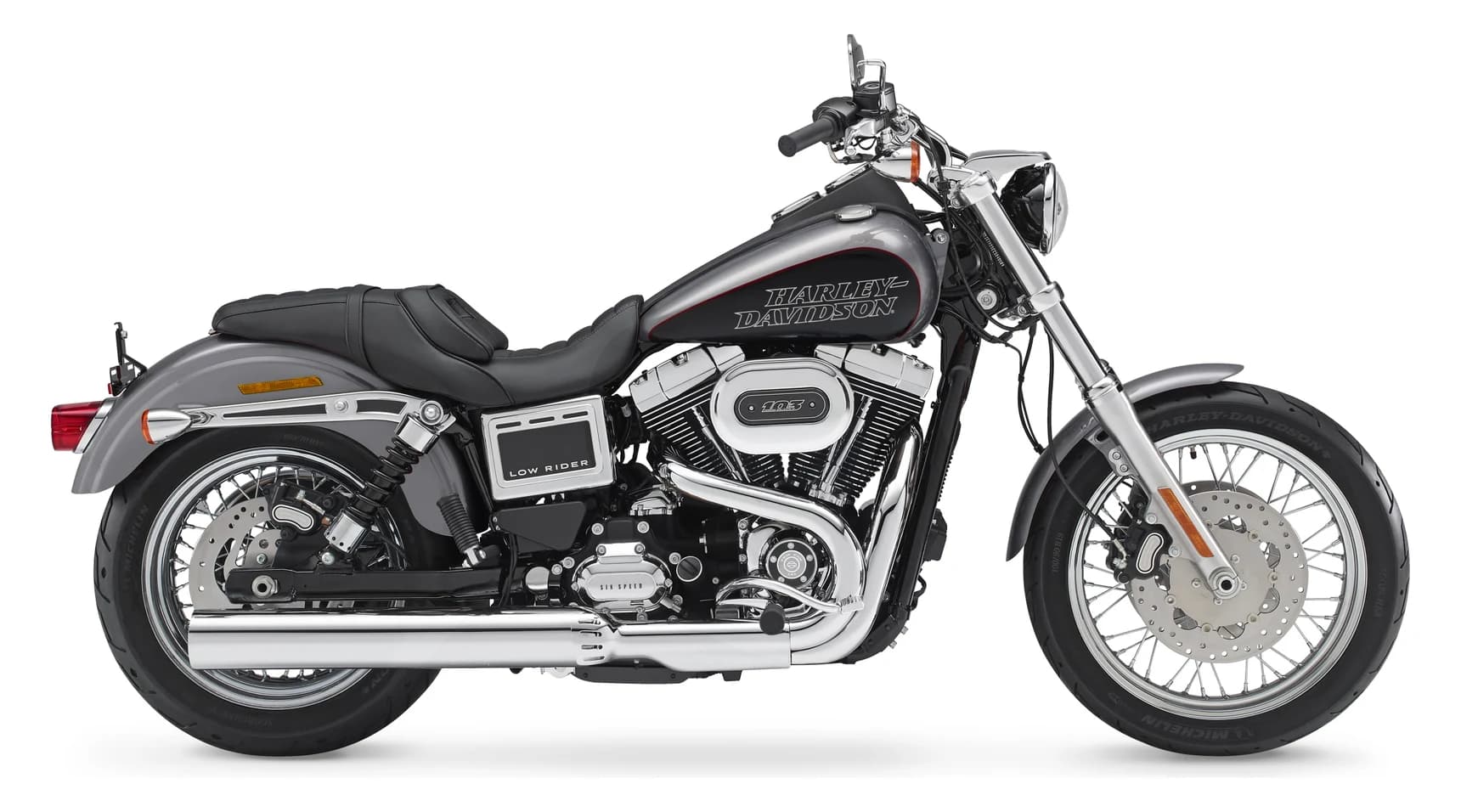

Data sheet
Dimensions & weights
- Wet weight
- 302 kg
- Ground clearance
- 105 mm
- Wheelbase
- 1630 mm
- Payload capacity
- 190 kg
Engine & drivetrain
- Engine
- 1690 cc · High Output Twin Cam 103
- Cooling
- Air/oil cooled
- Transmission
- 6-speed manual
- Final drive
- Belt
- Fuelling
- Electronic fuel injection
Fuel & range
- Fuel capacity
- 17.8 L
Electronics & rider aids
- ABS
- Optional from factory
Consumables & service specs
Every value carries its source.
Tyres
- Front
- 100/90B19 57HFactory front fitment on the laced-wheel configuration; this configuration uses an inner tube.H-D owner manual 2016 · official
- Rear
- 160/70B17 73VFactory rear fitment on the laced-wheel configuration; this configuration uses an inner tube.H-D owner manual 2016 · official
Tyre pressures
- Front — solo
- 30 psi coldExact model-year cold pressure.H-D owner manual 2016 · official
- Rear — solo
- 40 psi coldExact model-year cold pressure.H-D owner manual 2016 · official
Engine oil
- Viscosity
- SAE 20W-50Use the exact owner-manual temperature table for extreme cold or heat.H-D owner manual 2016 · official
- Capacity
- 2.8 L with filterSet final level using the owner-manual hot-check procedure rather than volume alone.H-D owner manual 2016 · official
Brakes
- Fluid type
- DOT 4Use only fresh DOT 4 from a sealed container.H-D owner manual 2016 · official
Fuel
- Minimum octane
- 91 AKI / 95 RONUnleaded fuel.H-D owner manual 2016 · official
- Ethanol tolerance
- E10 maximum for US-market motorcyclesDo not use E85 or methanol-containing fuel.H-D owner manual 2016 · official
