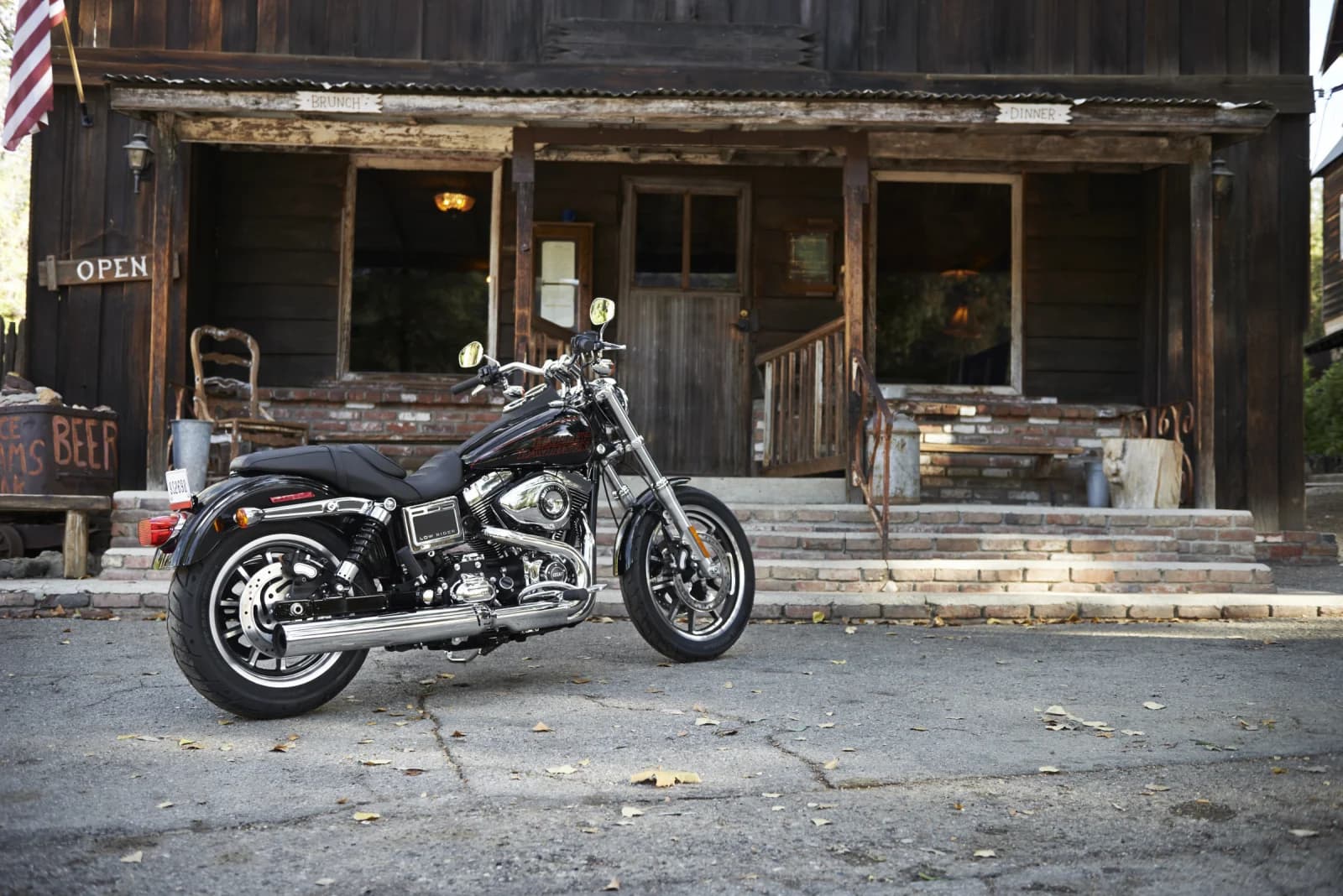

Data sheet
Dimensions & weights
- Wet weight
- 302 kg
- Ground clearance
- 105 mm
- Wheelbase
- 1630 mm
- Payload capacity
- 190 kg
Engine & drivetrain
- Engine
- 1690 cc · Twin Cam 103
- Cooling
- Air/oil cooled
- Transmission
- 6-speed manual
- Final drive
- Belt
- Fuelling
- Electronic fuel injection
Fuel & range
- Fuel capacity
- 17.8 L
Electronics & rider aids
- ABS
- Optional from factory
Consumables & service specs
Every value carries its source.
Tyres
- Front
- 100/90B19 57HFactory Michelin Scorcher 31 front fitment on the cast tubeless wheel.Harley-Davidson identity source · official
- Rear
- 160/70B17 73VFactory Michelin Scorcher 31 rear fitment on the cast tubeless wheel.Harley-Davidson identity source · official
Tyre pressures
- Rear — solo
- 40 psi coldExact MY2014 FXDL cold pressure.Harley-Davidson identity source · official
- Front — solo
- 30 psi coldExact MY2014 FXDL cold pressure.Harley-Davidson identity source · official
Engine oil
- Viscosity
- SAE 20W-50Use the owner-manual temperature table for extreme cold or heat.Harley-Davidson identity source · official
- Capacity
- 2.8 L with filterSet final level using the hot-check procedure rather than volume alone.Harley-Davidson identity source · official
Brakes
- Fluid type
- DOT 4Use only fresh DOT 4 from a sealed container.Harley-Davidson identity source · official
Fuel
- Minimum octane
- 91 AKI / 95 RONUnleaded fuel.Harley-Davidson identity source · official
- Ethanol tolerance
- E10 maximum for US-market motorcyclesDo not use E85 or methanol-containing fuel.Harley-Davidson identity source · official
Tyre Library
Tyres for this bike and year
Start with this motorcycle’s front and rear sizes. Open a tyre to check the complete fit for this exact bike and year; a size or original-equipment report alone does not confirm it.
No matching front and rear pair
Michelin Anakee Adventure
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Anakee III
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Anakee Road
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Anakee Wild
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli Angel GT
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli Angel GT II
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli Angel ST
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Adventure A41
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone Battlax Adventure Trail AT41
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Adventurecross AX41
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Adventurecross Scrambler AX41S
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX BT-45
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX BT46
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Sport Touring T32
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Sport Touring T33
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLE WING BW501 / BW502
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone BATTLECRUISE H50
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Commander III Cruiser
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Commander III Touring
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental ContiClassicAttack
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental ContiEscape
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental ContiLegend
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental ContiMotion
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental ContiRoad
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental ContiRoadAttack 4
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental ContiTrailAttack 3
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Enduro 3 Sahara
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Mitas Enduro Trail-ADV 2
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Mitas Enduro Trail-XT+
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Mitas Enduro Trail+
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone EXEDRA G853 / G852
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone EXEDRA MAX
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
IRC GP-21F / GP-22R
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Heidenau K60 Scout
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Dunlop K750
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Karoo 4
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Karoo Street
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Lasertec
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler ME 888 Marathon Ultra
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli MT 21 Rallycross
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli MT 60 RS
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental RB 2 / K 112
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Road 5
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Road 6
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Road 6 GT
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Road Classic
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Road W GT
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Roadtec 01
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Roadtec 01 SE
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Roadtec 02
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Roadtec Z8 Interact
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Scorcher 11
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Michelin Scorcher Adventure
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli Scorpion Rally
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli Scorpion Rally STR
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli Scorpion Trail II
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Pirelli Scorpion Trail III
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Avon Spirit ST
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Mitas Terra Force-R
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental TKC 70
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental TKC 70 Rocks
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental TKC 80
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Continental TKC 80²
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Tourance
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Metzeler Tourance Next 2
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
No matching front and rear pair
Bridgestone Trail Wing TW101 / TW42
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, a named tyre match.
Does not fit this bike
Avon Cobra Chrome
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, a named tyre match.
Does not fit this bike
Michelin Commander II
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, a named tyre match.
Does not fit this bike
Continental ContiTour
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, a named tyre match.
Does not fit this bike
Metzeler Cruisetec
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, a named tyre match.
Does not fit this bike
Pirelli Diablo Powercruiser
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, a named tyre match.
Does not fit this bike
Pirelli Night Dragon
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, a named tyre match.
Does not fit this bike
Michelin Scorcher 31
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, a named tyre match.
What breaks first and where.
Ignition switch can move out of the run position
SeriousRareNHTSA campaign 14V-413 covers specified MY2014.5 FXDL motorcycles fitted with certain optional performance calibrations. Engine vibration can move the ignition switch from IGN to ACC and stall the motorcycle. Confirm the engine-mount bracket and switch-knob remedy by VIN.
Symptoms
- Engine shuts off while riding
- Ignition switch moves from IGN to ACC
Field repairableNo — Confirm recall completion with an authorised Harley-Davidson dealer; VIN eligibility controls.
Ignition switch can fail internally
SeriousRareNHTSA campaign 16V-283 covers specified MY2014.5-2016 FXDL 103 motorcycles. Engine vibration can damage the ignition switch internally and stall the motorcycle. Confirm installation of the improved switch by VIN.
Symptoms
- Engine shuts off while riding
- Intermittent ignition power
Field repairableNo — Confirm recall completion with an authorised Harley-Davidson dealer; VIN eligibility controls.
Where to find things
Common locations for jacks, filters, fluids and fuse boxes. Follow the reference link when a picture helps more than words.
Engine oil fill
Engine-oil filler plug and dipstick are on the powertrain and are used for the upright hot-level check.
ReferenceBrake fluid reservoir
Front reservoir sight glass is at the handlebar master cylinder; rear reservoir is beside the rear brake system. Both must remain above their minimum marks.
ReferenceBattery
Battery is accessed after seat removal; model equipment around the battery must be moved in the owner-manual sequence.
ReferenceField toolkit
What it takes to remove a wheel, handle common field repairs, and get moving again.
10 lbf drive-belt tension gauge
RequiredCompact inflator with 0-60 psi gauge
RequiredExact-year spare fuse set and puller
RequiredPre-trip-confirmed fastener kit
RequiredTubeless tyre plug kit
Required
