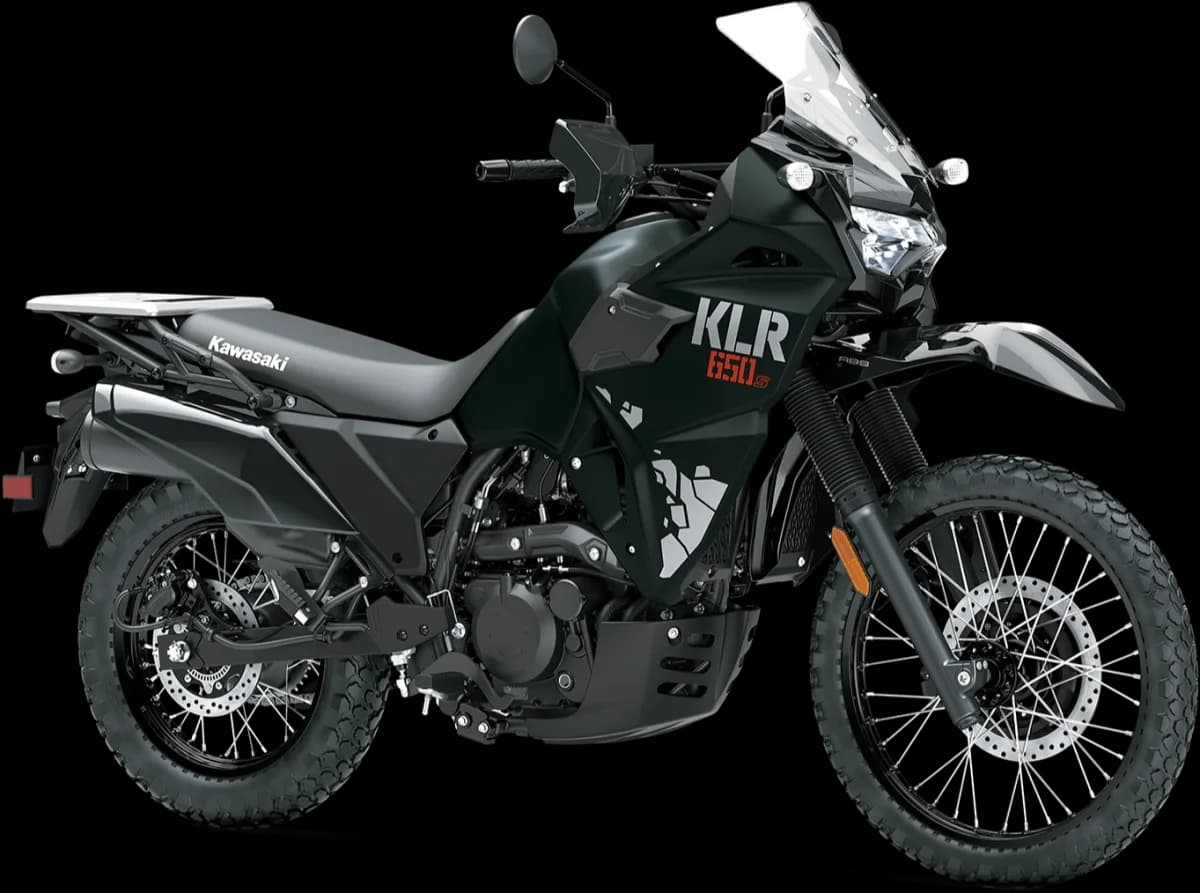

Data sheet
Dimensions & weights
- Wet weight
- 208.9 kg
- Seat height
- 815 mm
- Ground clearance
- 185 mm
- Wheelbase
- 1515 mm
- Suspension travel
- 200 / 185 mm
Engine & drivetrain
- Engine
- 652 cc · 652 cc liquid-cooled DOHC four-valve single-cylinder four-stroke
- Cooling
- Liquid cooled
- Output
- 40 hp · 53 Nm
- Transmission
- 5-speed, return shift, wet multi-disc clutch
- Final drive
- Chain
- Fuelling
- Electronic fuel injection
Fuel & range
- Fuel capacity
- 23.1 L
- Real world range
- 430 km
Electronics & rider aids
- Ride modes
- None
- Cruise control
- No
- Traction control
- No
- ABS
- Optional from factory
- Heated grips
- No
- Heated seat
- No
Service intervals
- Service interval
- 12,000 km / 12 months
- Valve check
- 15,000 km
- Chain lube
- every 800 km
- Air filter
- 12,000 km
Protection
- Bash plate
- None
- Radiator guard
- No
- Oil cooler guard
- No
- Hand guards
- No
Consumables & service specs
Every value carries its source.
Tyres
- Front
- 90/90-21 M/C 54SDunlop K750 dual-sport, tube-type, 21 in wheel. Same as KL650G standard.Kawasaki identity source · official
- Rear
- 130/80-17 M/C 65SDunlop K750 dual-sport, tube-type, 17 in wheel. Same as KL650G standard.Kawasaki identity source · official
Tyre pressures
- Front — solo
- 21 psi150 kPa / 1.5 bar cold; Kawasaki publishes the same front pressure across the load range.Kawasaki KLR650 S owner manual MY2025 · official
- Rear — solo
- 21 psi150 kPa / 1.5 bar cold for loads up to 97.5 kg (215 lb).Kawasaki KLR650 S owner manual MY2025 · official
- Front — loaded
- 21 psi150 kPa / 1.5 bar cold; Kawasaki publishes the same front pressure across the load range.Kawasaki KLR650 S owner manual MY2025 · official
- Rear — loaded
- 36 psi250 kPa / 2.5 bar cold for loads from 97.5–182 kg (215–401 lb).Kawasaki KLR650 S owner manual MY2025 · official
Engine oil
- Viscosity
- SAE 10W-40, API SG/SH/SJ/SL/SM and JASO MA/MA1/MA2Kawasaki's exact-year owner-manual specification for the wet clutch.Kawasaki KLR650 S owner manual MY2025 · official
- Capacity
- 2.0 LWith oil-filter replacement; 1.9 L without filter removal and 2.1 L total capacity.Kawasaki KLR650 S owner manual MY2025 · official
- Filter part no.
- 16097-0008Cross-ref TK03441B / Emgo 10-30300 / Dennis Kirk 303871. Same as KL650G standard.KLR650 maintenance schedule
Coolant
- Type
- Permanent-type coolant with corrosion inhibitors for aluminium engines and radiatorsUse the mixture and replacement procedure in the exact-year owner manual.Kawasaki KLR650 S owner manual MY2025 · official
- Capacity
- 1.5 LExact owner-manual system capacity.Kawasaki KLR650 S owner manual MY2025 · official
Brakes
- Fluid type
- DOT 3 or DOT 4Front and rear.Kawasaki KLR650 S owner manual MY2025 · official
Final drive
- Chain
- Sealed chainUse cleaner and lubricant suitable for sealed chains; the owner manual specifies 30–40 mm slack.Kawasaki KLR650 S owner manual MY2025 · official
Filters
- Air filter part no.
- 11013-1152Kawasaki ELEMENT-AIR FILTER; shared by 2022+ KLR650 and 2023+ KLR650 S variants.Kawasaki KLR650 S owner manual MY2025 · official
Spark plugs
- Type
- NGK DPR8EA-9Exact owner-manual specification.Kawasaki KLR650 S owner manual MY2025 · official
- Gap
- 0.8–0.9 mmExact owner-manual specification.Kawasaki KLR650 S owner manual MY2025 · official
- Quantity
- 1Single-cylinder engine.Kawasaki KLR650 S owner manual MY2025 · official
Battery
- Type
- Siam Furukawa FTX9-BS, sealedExact owner-manual battery designation.Kawasaki KLR650 S owner manual MY2025 · official
- Capacity
- 8.4 Ah12 V, 20-hour rating.Kawasaki KLR650 S owner manual MY2025 · official
Fuel
- Minimum octane
- 87AKI minimum for the US-market exact-year manual; use unleaded petrol.Kawasaki KLR650 S owner manual MY2025 · official
- Fuel type
- Unleaded petrolSee the exact-year manual for regional ethanol and octane requirements.Kawasaki identity source · official
