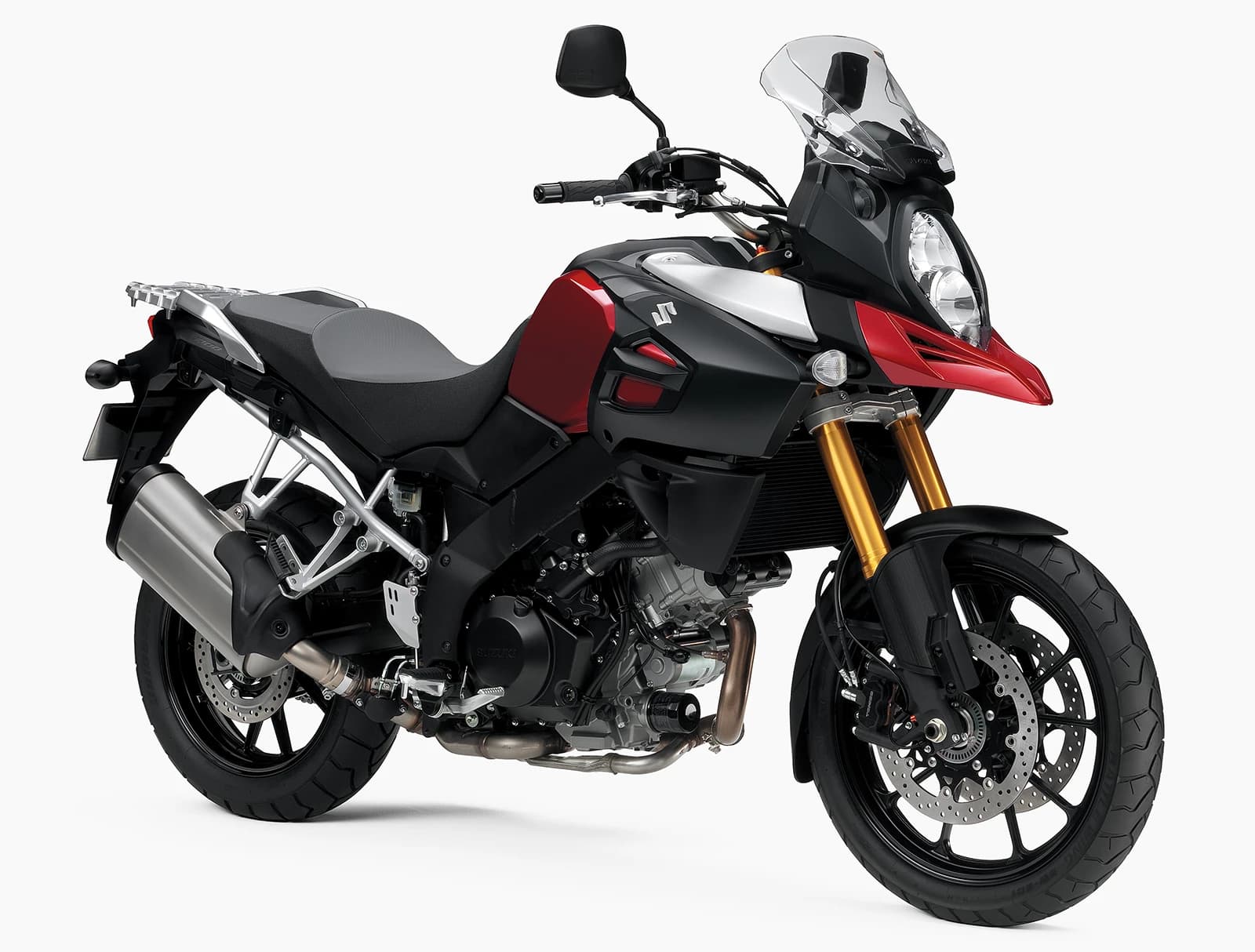

Data sheet
Dimensions & weights
- Wet weight
- 228 kg
- Seat height
- 850 mm
- Ground clearance
- 165 mm
- Wheelbase
- 1555 mm
- Suspension travel
- 160 / 160 mm
Engine & drivetrain
- Engine
- 1037 cc · V-twin
- Cooling
- Liquid cooled
- Output
- 100 hp · 103 Nm
- Transmission
- 6-speed
- Final drive
- Chain
- Fuelling
- Electronic fuel injection
Fuel & range
- Fuel capacity
- 20 L
- Real world range
- 380 km
Electronics & rider aids
- Ride modes
- None
- Cruise control
- No
- Traction control
- Yes · defeatable
- ABS
- Yes
- Heated grips
- No
- Heated seat
- No
Service intervals
- Service interval
- 12,000 km
- Valve check
- 24,000 km
Protection
- Bash plate
- None
- Radiator guard
- No
- Oil cooler guard
- No
- Hand guards
- No
Consumables & service specs
Every value carries its source.
Tyres
- Front
- 110/80R19M/C 59VSuzuki OM DL1000 L6 2016 · official
- Rear
- 150/70R17M/C 69VSuzuki OM DL1000 L6 2016 · official
Tyre pressures
- Front — solo
- 250 kPa2.50 kgf/cm2 / 36 psi, cold; Suzuki's manual lists a single stated pressure not split by solo/loadedSuzuki OM DL1000 L6 2016 · official
- Front — loaded
- 250 kPaManual states identical value for solo and passenger (Sozius) ridingSuzuki OM DL1000 L6 2016 · official
- Rear — solo
- 290 kPa2.90 kgf/cm2 / 42 psi, coldSuzuki OM DL1000 L6 2016 · official
- Rear — loaded
- 290 kPaManual states identical value for solo and passenger (Sozius) ridingSuzuki OM DL1000 L6 2016 · official
Engine oil
- Viscosity
- SAE 10W-40Suzuki OM DL1000 L6 2016 · official
- Capacity
- 3.1 lWith oil filter change; oil-change only (no filter) is 2.7 LSuzuki OM DL1000 L6 2016 · official
- Filter part no.
- 09915-40620Listed as oil filter wrench/part reference in manualSuzuki OM DL1000 L6 2016 · official
Coolant
- Type
- SUZUKI SUPER LONG LIFE COOLANT (blue) or SUZUKI LONG LIFE COOLANT (green)Suzuki OM DL1000 L6 2016 · official
- Capacity
- 2.13 lSuzuki OM DL1000 L6 2016 · official
Brakes
- Fluid type
- DOT 4Suzuki OM DL1000 L6 2016 · official
Final drive
- Chain
- RK525SMOZ8, 116 linksSuzuki OM DL1000 L6 2016 · official
Spark plugs
- Type
- NGK LMAR8BI-9Suzuki OM DL1000 L6 2016 · official
- Gap
- 0.8-0.9 mmSuzuki OM DL1000 L6 2016 · official
- Quantity
- 2Inferred from 90-degree V-twin, 2-cylinder engine; exact quantity not explicitly stated as a standalone field in the manualSuzuki OM DL1000 L6 2016 · official
Battery
- Type
- 12V 43.2 kC (12 Ah)/10 HSuzuki OM DL1000 L6 2016 · official
Fuel
- Minimum octane
- 95 RONUnleaded premium fuel, Research Octane Number 95 or higherSuzuki OM DL1000 L6 2016 · official
Tyre Library
Tyres for this bike and year
Start with this motorcycle’s front and rear sizes. Open a tyre to check the complete fit for this exact bike and year; a size or original-equipment report alone does not confirm it.
Sizes match, but more needs checking
Michelin Anakee Adventure
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Michelin Anakee III
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Michelin Anakee Road
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Pirelli Angel GT
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Bridgestone Battlax Adventure Trail AT41
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
manufacturer fact: Bridgestone lists this exact AT41 front and rear pair for the V-Strom 1000.
Sizes match, but more needs checking
Continental ContiRoadAttack 4
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Continental ContiTrailAttack 3
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Mitas Enduro Trail-ADV 2
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Metzeler Karoo Street
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Michelin Road 6
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Metzeler Roadtec 02
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Pirelli Scorpion Rally STR
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Pirelli Scorpion Trail II
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Pirelli Scorpion Trail III
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Avon Spirit ST
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Mitas Terra Force-R
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Continental TKC 70
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Metzeler Tourance
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Sizes match, but more needs checking
Metzeler Tourance Next 2
Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Pirelli Angel GT II
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Pirelli Angel ST
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Adventure A41
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Adventurecross AX41
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Adventurecross Scrambler AX41S
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX BT-45
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX BT46
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Sport Touring T32
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLAX Sport Touring T33
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLE WING BW501 / BW502
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone BATTLECRUISE H50
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Avon Cobra Chrome
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Commander II
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Commander III Cruiser
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Commander III Touring
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental ContiClassicAttack
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental ContiEscape
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental ContiLegend
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental ContiMotion
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental ContiRoad
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental ContiTour
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Metzeler Cruisetec
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Pirelli Diablo Powercruiser
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Metzeler Enduro 3 Sahara
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone EXEDRA G853 / G852
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone EXEDRA MAX
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
IRC GP-21F / GP-22R
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Dunlop K750
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Metzeler Lasertec
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Metzeler ME 888 Marathon Ultra
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Pirelli MT 21 Rallycross
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Pirelli MT 60 RS
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Pirelli Night Dragon
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental RB 2 / K 112
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Road 5
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Road 6 GT
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Road Classic
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Road W GT
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Metzeler Roadtec 01
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Metzeler Roadtec 01 SE
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Metzeler Roadtec Z8 Interact
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Scorcher 11
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Scorcher 31
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Michelin Scorcher Adventure
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Continental TKC 70 Rocks
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
No matching front and rear pair
Bridgestone Trail Wing TW101 / TW42
No complete front and rear size pair in this tyre range matches the selected bike and year.
Still needs checking: any manufacturer restrictions, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Michelin Anakee Wild
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Mitas Enduro Trail-XT+
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Mitas Enduro Trail+
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Heidenau K60 Scout
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Metzeler Karoo 4
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Pirelli Scorpion Rally
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Continental TKC 80
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
Does not fit this bike
Continental TKC 80²
The size names match, but one or more complete fit checks fail for this motorcycle.
Still needs checking: source information, any manufacturer restrictions, front and rear pairing, approved rim width, tube or tubeless setup, a named tyre match.
What breaks first and where.
Wiring harness rubbing on fuel tank / ignition switch corrosion / battery ground corrosion (three-part electrical recall)
SeriousRareSuzuki identified three related electrical defects on DL1000A/AA motorcycles: (1) the wiring harness may contact the bottom of the fuel tank due to improper routing, and vibration can wear the insulation, exposing bare wire and creating a short; (2) the ignition switch connector terminals can corrode if splashed with corrosive liquid (e.g. salt water), potentially preventing the engine from being switched off or causing loss of electrical power; (3) the battery ground connection may develop poor conductivity due to corrosion or a weak connection to the painted crankcase surface. Any of the three can cause the engine to stall while riding. The recall production range covered 2014-2015 model year units, plus 6 additional 2016-model-year units built to the same wiring-harness routing.
Symptoms
- Engine stalling while riding
- Inability to switch off engine with ignition key (if ignition connector corrosion is present)
- Intermittent loss of electrical power
Field repairableNo — Requires dealer inspection/rerouting of wiring harness, installation of ignition switch connector cover, and/or relocation of battery ground connection; not a rider-serviceable field fix.
Where to find things
Common locations for jacks, filters, fluids and fuse boxes. Follow the reference link when a picture helps more than words.
Engine oil fill
Oil filler cap on the right side of the engine; sight glass low on the same side.
ReferenceCoolant reservoir
Coolant reservoir behind the right-side lower bodywork; check cold between the marks.
ReferenceBrake fluid reservoir
Front reservoir at the right handlebar; rear reservoir on the right side near the brake pedal.
Reference
