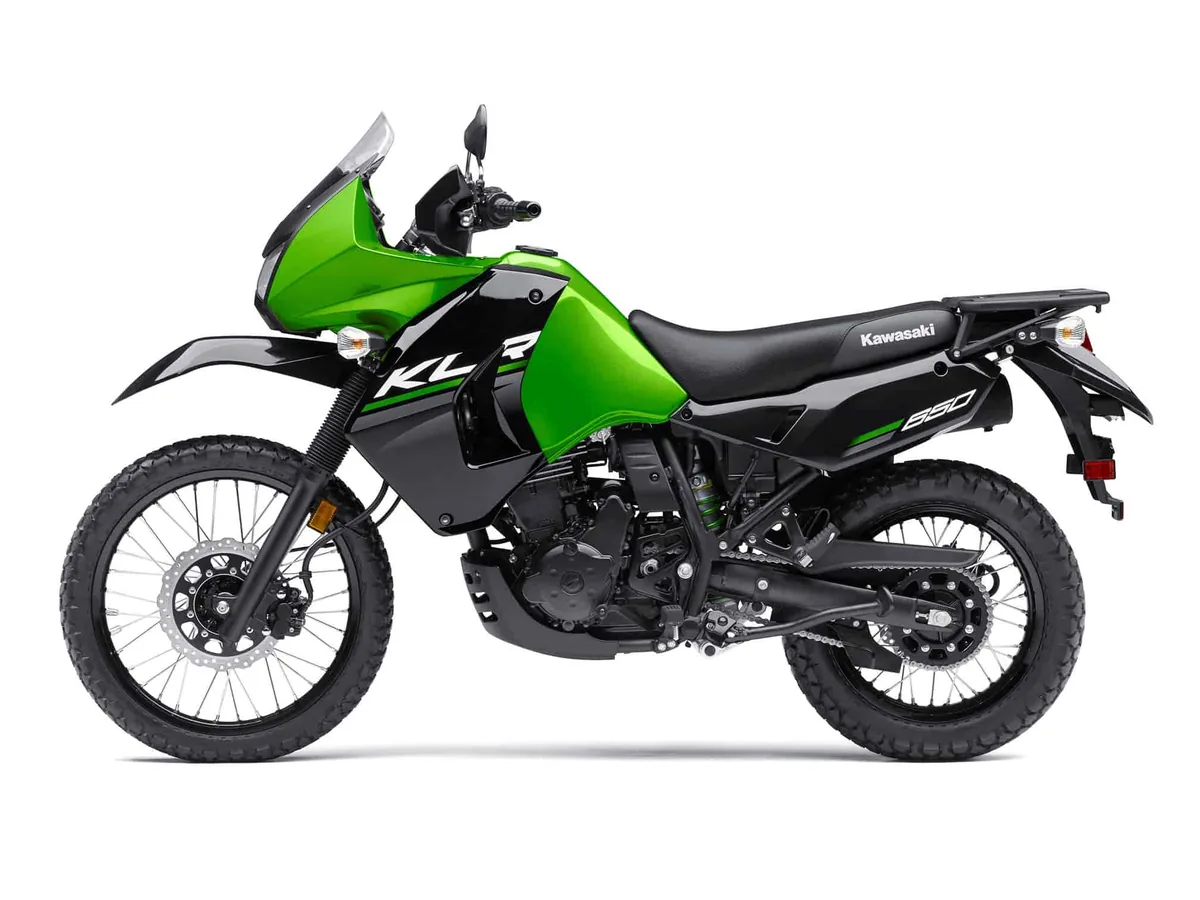

Data sheet
Dimensions & weights
- Wet weight
- 194 kg
- Seat height
- 890 mm
- Ground clearance
- 210 mm
- Wheelbase
- 1480 mm
- Suspension travel
- 200 / 185 mm
Engine & drivetrain
- Engine
- 651 cc · Single
- Cooling
- Liquid cooled
- Output
- 42 hp · 45 Nm
- Transmission
- 5-speed
- Final drive
- Chain
- Fuelling
- Electronic fuel injection
Fuel & range
- Fuel capacity
- 22 L
- Real world range
- 320 km
Electronics & rider aids
- Ride modes
- None
- Cruise control
- No
- Traction control
- No
- ABS
- Yes
- Heated grips
- No
- Heated seat
- No
Service intervals
- Service interval
- 7,500 km
- Valve check
- 15,000 km
- Chain lube
- every 800 km
- Air filter
- 12,000 km
Protection
- Bash plate
- None
- Radiator guard
- No
- Oil cooler guard
- No
- Hand guards
- No
Consumables & service specs
Every value carries its source.
Tyres
- Front
- 90/90-21 54SKawasaki AU 2016 KLR650 Brochure · official
- Rear
- 130/80-17 65SKawasaki AU 2016 KLR650 Brochure · official
Tyre pressures
- Front — solo
- 21 psiPer owner's manual, for rider weight up to ~215 lb; cold tyre pressureReddit r/klr650 Tire Pressure
- Rear — solo
- 28 psiPer owner's manual, for rider weight up to ~215 lb; cold tyre pressure. Note: some owner-manual excerpts cited in forums show 21 psi rear as well depending on model year printing; 28 psi is the most frequently and consistently cited figure across multiple independent owner-manual quotesADVrider KLR650 Tire Pressure
Engine oil
- Viscosity
- SAE 10W-40, API SG/SH or higherWidely and consistently cited across owner-manual-derived maintenance guidesWilland Service Centre KLR650 Oil Change Guide
- Capacity
- 2.5 lWith oil filter change (approx. 2.6 US qt / 2.5 L per multiple owner-manual-derived sources); without filter change approx. 2.1 US qt (2.0 L). Community and video sources report the manual figure of 2.1 qt often under-fills to the sight glass and 2.5 qt with filter change is the practical fill amountKLRforum Oil Capacity Discussion
- Filter part no.
- 16097-0008Kawasaki OEM oil filter part number widely cited by parts retailers for Gen1 KLR650 (1987-2018); not independently verified against an official Kawasaki parts-fiche primary source in this research passKLRforum Oil Capacity Question
Final drive
- Chain
- 520 O-ring, 106 linksSprockets 15T front / 43T rear per corroborating spec compilation; not independently confirmed against an official Kawasaki service manual page in this passCommon-Room KLR650 Specs PDF
Spark plugs
- Type
- NGK DPR8EA-9 (or NGK DPR8EIX-9 iridium)Consistently cited across NGK's own fitment tool and multiple parts retailers for KLR650 1987-2020NGK Spark Plug Fitment — KLR650 · official
- Gap
- 0.9 mmBikerRated Kawasaki Spark Plug Chart
- Quantity
- 1Single-cylinder engineKawasaki AU 2016 KLR650 Brochure · official
What breaks first and where.
"Doohickey" balancer chain idler lever/tensioner failure
CatastrophicOccasionalThe engine balancer chain idler lever (nicknamed the 'doohickey') and its tensioning spring are underdesigned relative to the load they carry. On pre-2008 KLR650s the factory idler lever could crack or shear, allowing the balancer chain to jump time or seize the engine. Kawasaki improved the idler lever design for the 2008+ model year (which the 2016 model uses), but the factory extension spring remains too weak/long to provide adequate tension over time, so failure risk persists, just at a reduced rate versus pre-2008 units.
Symptoms
- Rattling or clacking noise from the front of the engine
- Metallic knocking that worsens with mileage
- In severe cases: sudden engine seizure with no warning
Field repairableYes — Widely performed preemptive upgrade: replace the OEM idler lever/spring with an aftermarket heavy-duty doohickey kit (e.g. torsion-spring-based designs) using basic hand tools, following the teardown procedure in the linked repair guide. Many owners perform this proactively before failure occurs.
Subframe bolt/bushing wear causing rear subframe looseness
ModerateCommonThe rear subframe attaches to the main frame via bolts through welded-in bushings that are oversized relative to the bolt diameter on Gen1 KLR650s. Over time and with load (luggage, passenger, rough terrain), the bolts wear against the oversized bushings, causing the subframe to become loose and clunk, and in some cases contributing to subframe cracking under sustained heavy loads.
Symptoms
- Clunking noise from the rear subframe area, especially over bumps or under braking
- Visible play when grabbing and shaking the rear rack/subframe
- In advanced cases: visible cracking at subframe mounting points
Field repairableYes — Common enthusiast fix is the 'drill-thru' mod: progressively drill out the worn bolt holes/bushings and install oversized bolts/bushings for a tighter fit. Full procedure documented in the linked ADVrider walkthrough.
Weak stock front fork springs (excessive dive, poor damping control)
MinorWidespreadThe stock 41mm fork springs are widely reported by the owner community as under-sprung for the bike's weight and off-road use case, leading to excessive fork dive under braking and harsh bottoming over bumps or landings. This is a widely known and discussed characteristic rather than a discrete failure mode.
Symptoms
- Excessive front-end dive under braking
- Fork bottoming out on rough terrain or jumps
- Vague front-end feel at speed
Field repairableYes — Common owner remedy is installing aftermarket progressive or linear replacement fork springs and heavier fork oil; a well-documented DIY job with basic tools, but a specific written step-by-step primary source was not located in this research pass (video demonstrations exist but were not treated as citable primary sources).
