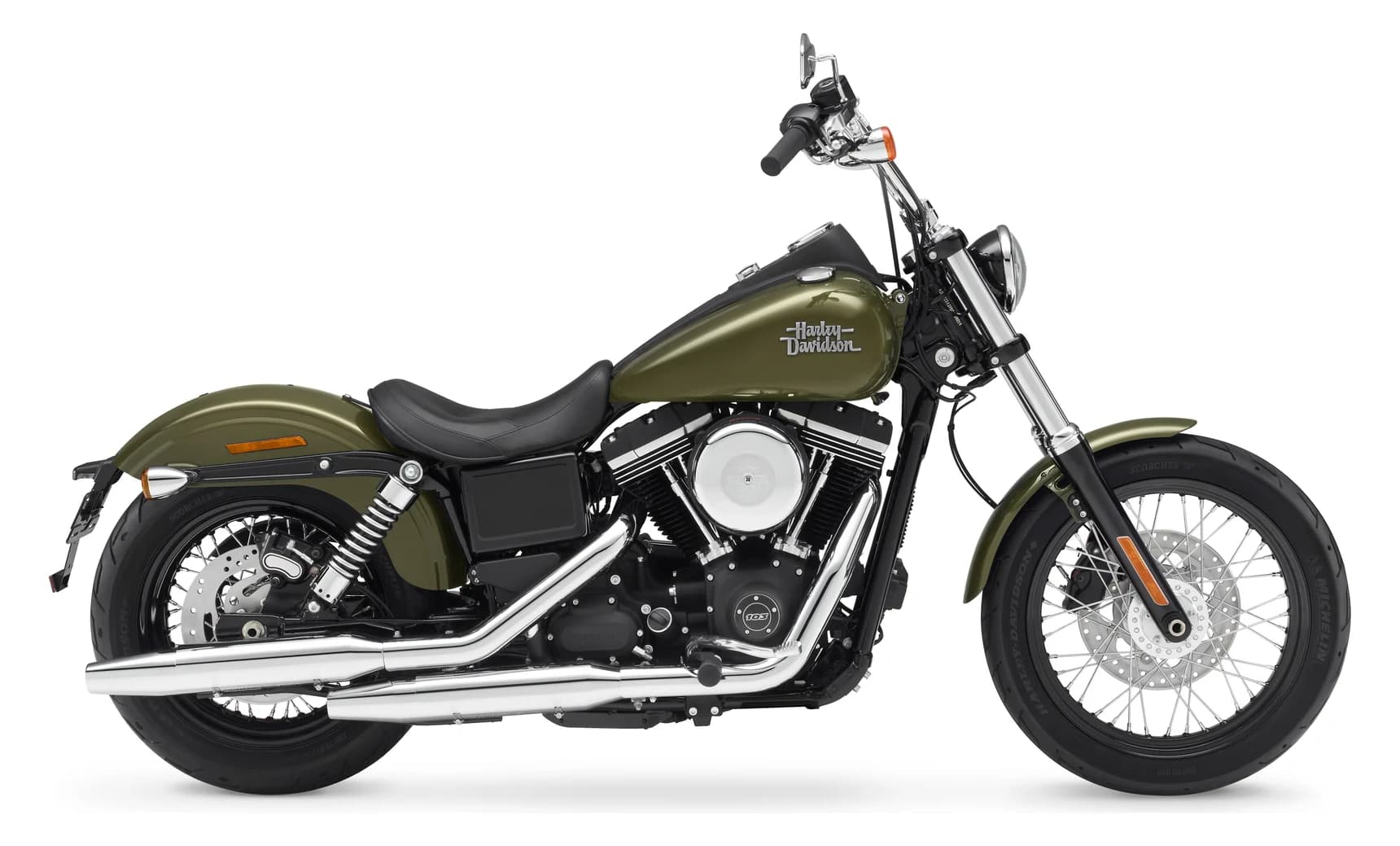

Data sheet
Dimensions & weights
- Wet weight
- 304 kg
- Weight without fuel
- 287.6 kg
- Ground clearance
- 120 mm
- Wheelbase
- 1630 mm
- Payload capacity
- 188 kg
Engine & drivetrain
- Engine
- 1690 cc · Air-cooled Twin Cam 103
- Cooling
- Air cooled
- Output
- 98 hp · 134 Nm
- Transmission
- 6-speed Cruise Drive manual
- Final drive
- Belt
- Fuelling
- Electronic fuel injection
Fuel & range
- Fuel capacity
- 17.8 L
Electronics & rider aids
- Cruise control
- No
- ABS
- Optional from factory
Consumables & service specs
Every value carries its source.
Tyres
- Front
- 100/90B19 57HBlack steel laced wheels with inner tubes and rim strips; use the matching inner tube and rim strip.H-D owner manual 2016 · official
- Rear
- 160/70B17 73VBlack steel laced wheels with inner tubes and rim strips; use the matching inner tube and rim strip.H-D owner manual 2016 · official
Tyre pressures
- Front — solo
- 30 psi coldExact model-year cold pressure.H-D owner manual 2016 · official
- Rear — solo
- 40 psi coldExact model-year cold pressure.H-D owner manual 2016 · official
Engine oil
- Viscosity
- SAE 20W-50Use the exact owner-manual temperature table for extreme cold or heat.H-D owner manual 2016 · official
- Capacity
- 2.8 L with filterSet final level using the exact owner-manual hot-check procedure rather than volume alone.Harley-Davidson identity source · official
Brakes
- Fluid type
- DOT 4Use only fresh DOT 4 hydraulic brake fluid from a sealed container.H-D owner manual 2016 · official
Fuel
- Minimum octane
- 91 pump octane (R+M)/2Premium unleaded; 95 RON equivalent.H-D owner manual 2016 · official
