BMW R1300GS

Factory configuration

Standard

What changed for 2026 · Standard

Factory model-year package
MY2026 changes Style Trophy to White Aluminium Matt Metallic with Racing Blue Metallic while retaining the R 1300 GS platform. Manufacturer source

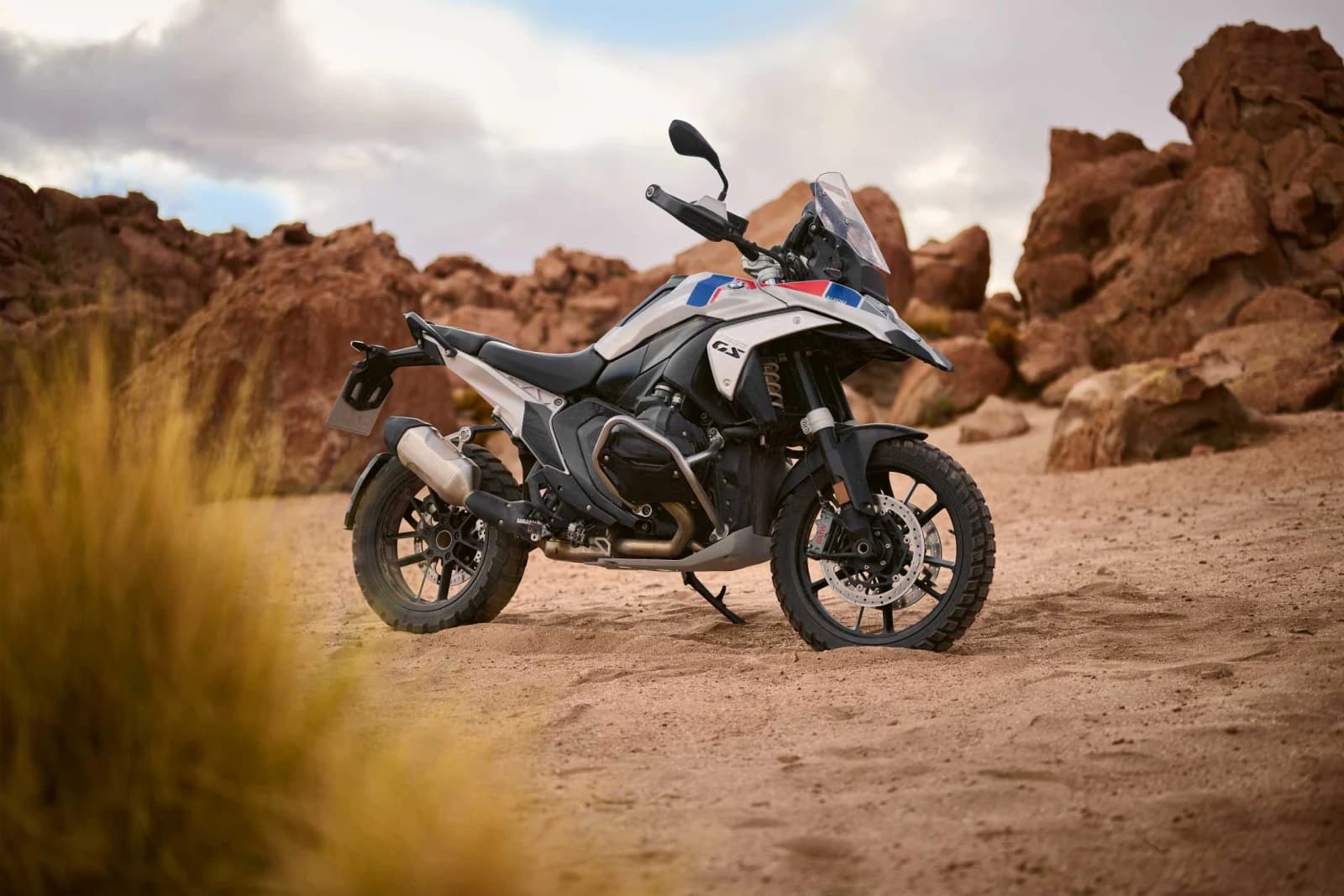

BMW R1300GS — Standard — 2024–2026
Image: BMW Motorrad PressClub — MY2026 Style Trophy full motorcycle, BMW PressClub ID P90624522.

Vitals

Wet weight
237 kg
Seat height
850 / 890 mm
Fuel capacity
19 L
Real world range
320 km
Front tyre
120/70 R19
Rear tyre
170/60 R17
Tyre pressures
2.5 / 2.9 bar solo
Payload capacity
228 kg
TerrainTarmacGravel — easyGravel — technicalSand

Field repair

Fuse box
Under the seat
Fuses
5
OBD port
Under the seat (diagnostic connector); legally mandated OBD socket on-board · BMW proprietary via GS-911 (K+DCAN/ENET); legally mandated OBD socket on-board
Battery access
Under the rider seat; remove the rider seat to reach the 12 V battery terminals

Plug and reinflate a tubeless tread puncture

  1. 01Confirm the puncture is confined to the tread and that the sidewall, bead and wheel are undamaged; otherwise recover the motorcycle.
  2. 02Remove the object, prepare the puncture and install the repair plug with the kit instructions.
  3. 03Inflate to the documented cold pressure and leak-check the repair.
  4. 04Ride conservatively to professional tyre service; a field plug is not authority to continue with structural tyre damage.

Check the shaft final drive after impact or leakage

  1. 01Clean and inspect the final-drive housing, gaiters and wheel interface for fresh oil, impact damage or looseness.
  2. 02With the motorcycle securely supported, check for abnormal wheel play or roughness without disturbing sealed components.
  3. 03Use only the documented oil grade and exact service-fill procedure; do not estimate a quantity from the fill-plug level.
  4. 04Stop and recover the motorcycle if leakage continues, metal debris is present, or bearing play or roughness is detected.

Replace a failed fuse safely

  1. 01Switch the ignition off and access the documented fuse location without pulling on wiring.
  2. 02Identify and correct any visible short, water ingress or chafed insulation before replacement.
  3. 03Replace only with the same type and amperage; never bridge or uprate a fuse.
  4. 04If the replacement fails again, isolate the circuit and recover the motorcycle for diagnosis.

Data sheet

Dimensions & weights

Wet weight
237 kg
Seat height
850 / 890 mm
Wheelbase
1518 mm
Suspension travel
190 / 200 mm
Payload capacity
228 kg

Engine & drivetrain

Engine
1300 cc · Boxer twin
Cooling
Liquid cooled
Output
145 hp · 149 Nm
Transmission
6-speed
Final drive
Shaft
Fuelling
Electronic fuel injection

Fuel & range

Fuel capacity
19 L
Real world range
320 km

Electronics & rider aids

Ride modes
Rain/Road/Eco/Enduro/Enduro Pro/Dynamic
Cruise control
Yes
Traction control
Yes · defeatable
ABS
Yes · fully defeatable
Heated grips
Yes
Heated seat
No

Service intervals

Service interval
10,000 km
Valve check
20,000 km
Air filter
20,000 km

Protection

Bash plate
None
Radiator guard
No
Oil cooler guard
No
Hand guards
Yes

Consumables & service specs

Every value carries its source.

Tyre pressures

Front — solo
2.5 barAt cold tyre, 20°C referenceBMW R 1300 GS manual 2026 · official
Rear — solo
2.9 barAt cold tyre, 20°C referenceBMW R 1300 GS manual 2026 · official
Front — loaded
2.5 barBMW gives one cold front pressure across the permitted load range.BMW R 1300 GS manual 2026 · official
Rear — loaded
2.9 barBMW gives one cold rear pressure across the permitted load range.BMW R 1300 GS manual 2026 · official

Engine oil

Viscosity
SAE 5W-40API SL / JASO MA2BMW R 1300 GS manual 2026 · official
Capacity
5.0 lMax, with filter change — increased from 4.0l on R1250 generation due to larger new engineBMW R 1300 GS manual 2026 · official

Coolant

Capacity
0.8 lCooling-circuit service fill reported for the 0M21 platform; full drain and refill is a workshop procedure.BMW Motorrad RSD · official
Type
BMW Motorrad-approved antifreeze with corrosion inhibitorUse compatible premix; do not mix incompatible coolant chemistries. Top up only at the expansion tank with the engine cold.BMW R 1300 GS manual 2026 · official

Brakes

Fluid type
DOT 4BMW specifies DOT 4 for both front and rear brake circuits; use fresh fluid from a sealed container.BMW R 1300 GS manual 2026 · official

Final drive

Shaft oil grade
Cardan shaft drive with bevel gear, EVO-Paralever single-sided swingarmFinal drive ratio 2.909 (32/11 teeth) per BMW manualBMW R 1300 GS manual 2026 · official
Shaft oil capacity
180 mlConfirmed identical to R1250 generation across multiple documented oil-change procedures for R1300GS; BMW's 0M21 service manual mandates first change at 1,000km and every 20,000km thereafter (vs 'filled for life' on earlier gens)BMW Motorrad RSD · official

Spark plugs

Type
NGK LMAR8AI-10Manufacturer and designation listed in the official BMW rider's manual.BMW R 1300 GS manual 2026 · official
Quantity
2One per cylinder, boxer twinBMW R 1300 GS manual 2026 · official

Battery

Type
12 V 10 Ah maintenance-free lithium-ion; 14 Ah with Option 719 Shadow package; AGM in cold-climate specificationOfficial BMW rider's manual distinguishes the standard battery, the 14 Ah Option 719 fitment and the cold-climate AGM fitment.BMW R 1300 GS manual 2026 · official

Fuel

Minimum octane
91 ROZ/RON / 87 AKI (95 ROZ/RON recommended, adaptive 91-98 ROZ/RON)BMW R 1300 GS manual 2026 · official
Ethanol tolerance
Max 15% ethanol (E10/E15)BMW R 1300 GS manual 2026 · official

Tyre Library

Tyres for this bike and year

Start with this motorcycle’s front and rear sizes. Open a tyre to check the complete fit for this exact bike and year; a size or original-equipment report alone does not confirm it.

Search these sizes

Sizes match, but more needs checking

Michelin Anakee Adventure

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

manufacturer fact: Michelin's 2025 guide identifies the Anakee Adventure as original equipment for the BMW R 1300 GS.

Sizes match, but more needs checking

Michelin Anakee III

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Michelin Anakee Road

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Michelin Anakee Wild

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Pirelli Angel GT II

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Bridgestone BATTLAX Adventure A41

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Bridgestone Battlax Adventure Trail AT41

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Bridgestone BATTLAX Adventurecross Scrambler AX41S

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Continental ContiRoadAttack 4

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Continental ContiTrailAttack 3

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Mitas Enduro Trail-ADV 2

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Metzeler Karoo 4

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Metzeler Karoo Street

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Metzeler ME 888 Marathon Ultra

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Michelin Road 6

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Metzeler Roadtec 02

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Michelin Scorcher Adventure

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Pirelli Scorpion Rally

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Pirelli Scorpion Rally STR

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Pirelli Scorpion Trail II

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Pirelli Scorpion Trail III

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Avon Spirit ST

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Mitas Terra Force-R

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Continental TKC 70

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Sizes match, but more needs checking

Metzeler Tourance Next 2

Matching front and rear sizes exist, but some motorcycle requirements or the front-and-rear pairing still need confirmation.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Pirelli Angel GT

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Pirelli Angel ST

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone BATTLAX Adventurecross AX41

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone BATTLAX BT-45

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone BATTLAX BT46

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone BATTLAX Sport Touring T32

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone BATTLAX Sport Touring T33

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone BATTLE WING BW501 / BW502

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone BATTLECRUISE H50

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Avon Cobra Chrome

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Commander II

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Commander III Cruiser

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Commander III Touring

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental ContiClassicAttack

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental ContiEscape

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental ContiLegend

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental ContiMotion

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental ContiRoad

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental ContiTour

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Metzeler Cruisetec

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Pirelli Diablo Powercruiser

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Metzeler Enduro 3 Sahara

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone EXEDRA G853 / G852

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone EXEDRA MAX

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

IRC GP-21F / GP-22R

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Dunlop K750

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Metzeler Lasertec

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Pirelli MT 21 Rallycross

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Pirelli MT 60 RS

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Pirelli Night Dragon

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental RB 2 / K 112

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Road 5

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Road 6 GT

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Road Classic

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Road W GT

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Metzeler Roadtec 01

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Metzeler Roadtec 01 SE

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Metzeler Roadtec Z8 Interact

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Scorcher 11

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Michelin Scorcher 31

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental TKC 70 Rocks

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Continental TKC 80

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Metzeler Tourance

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

No matching front and rear pair

Bridgestone Trail Wing TW101 / TW42

No complete front and rear size pair in this tyre range matches the selected bike and year.

Still needs checking: load rating, any manufacturer restrictions, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Does not fit this bike

Mitas Enduro Trail-XT+

The size names match, but one or more complete fit checks fail for this motorcycle.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Does not fit this bike

Mitas Enduro Trail+

The size names match, but one or more complete fit checks fail for this motorcycle.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Does not fit this bike

Heidenau K60 Scout

The size names match, but one or more complete fit checks fail for this motorcycle.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Does not fit this bike

Continental TKC 80²

The size names match, but one or more complete fit checks fail for this motorcycle.

Still needs checking: source information, load rating, any manufacturer restrictions, front and rear pairing, approved rim width, speed rating, tube or tubeless setup, a named tyre match.

Where to find things

Common locations for jacks, filters, fluids and fuse boxes. Follow the reference link when a picture helps more than words.

Engine oil fill

Engine-oil filler and level-check point on the engine; use the referenced owner-manual level procedure and keep contamination out of the opening.

Reference

Coolant reservoir

Coolant expansion reservoir shown in the referenced owner-manual general-view and maintenance diagrams; open or top up only when the system is cold.

Reference

Brake fluid reservoir

Front reservoir at the handlebar master cylinder and rear reservoir beside the rear master cylinder; use the manual's motorcycle attitude for level checks.

Reference

Battery

Under the rider seat; remove the rider seat to reach the 12 V battery terminals.

Reference

Fuse box — interior

Under the seat

Reference

OBD-II port

Under the seat (diagnostic connector); legally mandated OBD socket on-board

Reference

Field toolkit

What it takes to remove a wheel, handle common field repairs, and get moving again.

Compact inflator with 0-60 psi gauge

Required
Reinflate and pressure-check either wheel after puncture repair. Reinflates a repaired tyre or tube and verifies cold pressure.Breakstate T1 baseline

Pre-trip-confirmed fastener kit

Required
Panels, seat, battery access and non-safety-critical adjustments. Carry only driver profiles and sizes confirmed on the selected motorcycle during its pre-trip service.Breakstate T1 baseline

Tubeless reamer, insertion tool and vulcanising plug strings

Required
Seal a repairable tread puncture in the 120/70 R19 front or 170/60 R17 rear tubeless tyre. Repairs a straightforward tread puncture without removing the wheel; not for sidewall or major carcass damage.Breakstate T1 baseline
