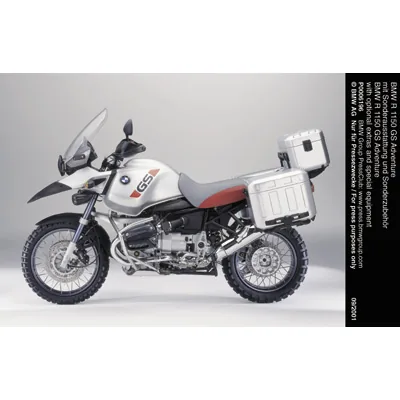

BMW R1150GSA Oilhead — 2003–2005
Image: BMW Group PressClub — Null

Vitals

Wet weight
253 kg
Seat height
900 mm
Fuel capacity
30 L
Real world range
525665 km
Front tyre
110/80 R19 59H
Rear tyre
150/70 R17 69H
Tyre pressures
2.2 / 2.5 bar solo
Ground clearance
220 mm
Payload capacity
217 kg
TerrainTarmacGravel — easyGravel — technicalSandRiver crossings

Field repair

Fuse box
Central electrical equipment box under the seat (remove seat and cover to access)
Fuses
10
OBD port
Round diagnostic connector under the front of the seat, above the airbox (proprietary BMW 10-pin round plug, not standard OBD-II) · BMW proprietary via MoDiTeC (factory) or GS-911 (aftermarket) through round diagnostic connector; no OBD-II/K+DCAN on this era
Battery access
Under seat; disengage seat, battery secured with a rubber strap, gel-type 12V 19Ah maintenance-free battery

Replacing the Hall Effect Sensor (HES)

  1. 01Disconnect and insulate the negative battery lead before starting any electrical work.
  2. 02Remove the starter cover and rubber timing-hole bung to expose the timing mark; pull the spark plugs and put the transmission in third gear.
  3. 03Rotate the rear wheel by hand (in the normal direction of travel) to find top dead center (TDC), using the timing mark or a non-marring probe in the cylinder.
  4. 04Lock the flywheel via the timing hole (e.g., with a long hex key) to prevent rotation.
  5. 05Remove the alternator belt cover; scribe a reference mark on the HES position relative to its mount before removal to preserve approximate ignition timing.
  6. 06Remove the two bolts and one nut (13mm) holding the alternator, allowing the belt to be removed; inspect the belt for cracking while it's off.
  7. 07With the flywheel still locked, loosen the crankshaft pulley bolt (16mm) and remove the pulley, noting it is keyed to the crankshaft.
  8. 08Remove the three 4mm hex bolts and 5mm hex retainer clip securing the HES; disconnect its connector and remove the sensor.
  9. 09Install the new HES, reversing the removal steps; torque the crankshaft pulley bolt to 50 Nm.
  10. 10Re-tension the alternator belt: initial adjuster bolt torque approx. 8 Nm (belt should twist about 90° at its midpoint), then tighten the three alternator mounting fasteners to 20 Nm.
  11. 11With the engine off, switch on the ignition (do not start) and fully open the throttle twice to let the Motronic control unit resynchronize with the new hall sensor.
  12. 12Start the engine and confirm normal running before riding.

Replacing the alternator drive belt (Poly-V, pre-July 2003 production)

  1. 01Switch off the ignition and disconnect the negative battery lead for safety.
  2. 02Remove the four bolts securing the black plastic alternator belt cover at the front of the engine (4mm hex) and slide the cover down and off.
  3. 03Loosen the two nuts and one bolt (all 13mm) that secure the alternator, allowing it to pivot down and slacken the belt.
  4. 04Remove the old belt and inspect the pulleys for wear or glazing.
  5. 05Fit the new belt, ensuring it is correctly seated in the pulley grooves.
  6. 06Using the BMW belt-tensioning special tool (or by prying the alternator up with a flat lever if the tool is unavailable), tension the belt via the adjuster bolt on the left side to 8 Nm.
  7. 07Tighten the two alternator mounting nuts and one bolt to 20 Nm once the belt tension is set.
  8. 08Verify tension is correct: belt should twist approximately 90 degrees at the midpoint between pulleys, no more and no less.
  9. 09Reinstall the belt cover and reconnect the battery.

Data sheet

Dimensions & weights

Wet weight
253 kg
Seat height
900 mm
Ground clearance
220 mm
Wheelbase
1501 mm
Suspension travel
190 / 200 mm
Payload capacity
217 kg

Engine & drivetrain

Engine
1130 cc · Boxer twin
Cooling
Air/oil cooled
Output
85 hp · 98 Nm
Transmission
6-speed
Final drive
Shaft
Fuelling
Electronic fuel injection

Fuel & range

Fuel capacity
30 L
Real world range
525665 km

Electronics & rider aids

Ride modes
None
Cruise control
No
Traction control
No
ABS
Yes
Heated grips
No
Heated seat
No

Service intervals

Service interval
10,000 km
Valve check
10,000 km
Air filter
10,000 km

Protection

Bash plate
Partial engine
Radiator guard
No
Oil cooler guard
No
Hand guards
No

Consumables & service specs

Every value carries its source.

Tyres

Front
110/80 R19 59HTubeless. Wheel: 2.50 x 19 MT H2. OE tyre: Continental TKC 80 (massive-bar/knobby tyre optional).BMW OM R1150GS/Adv · official
Rear
150/70 R17 69HTubeless. Wheel: 4.00 x 17 MT H2. OE tyre: Continental TKC 80 (massive-bar/knobby tyre optional).BMW OM R1150GS/Adv · official

Tyre pressures

Front — solo
2.2 barTyres cold. Same for R1150GS and Adventure per official rider's manual.BMW OM R1150GS/Adv · official
Rear — solo
2.5 barTyres cold.BMW OM R1150GS/Adv · official
Front — loaded
2.5 barTwo-up, or two-up with luggage (front pressure is same for both loaded conditions).BMW OM R1150GS/Adv · official
Rear — loaded
2.7-2.9 bar2.7 bar two-up; 2.9 bar two-up with luggage.BMW OM R1150GS/Adv · official

Engine oil

Capacity
3.75 lWith oil filter change (3.5 l without filter change). Quantity between MIN/MAX marks: 0.5 l.BMW Repair Manual R1150GS · official

Brakes

Fluid type
DOT 4BMW recommends BMW-brand DOT 4 brake fluid; only use new fluid from a sealed container.BMW Repair Manual R1150GS · official

Forks

Oil viscosity
BMW telescopic fork oil (proprietary grade)BMW repair manual specifies 'BMW telescopic fork oil' as the approved grade; no separate SAE viscosity number given in the primary source.BMW Repair Manual Group 31 · official
Oil capacity
470 ml0.47 l (0.4966 US quart) per fork leg, per BMW R1150GS repair manual Group 31 (Front Forks) technical data.BMW Repair Manual Group 31 · official

Final drive

Shaft oil grade
Shaft final drive via two-joint driveshaft (Paralever) into single-sided swingarm bevel-gear final drive housing; final drive ratio 1:2.82Shaft-drive bike; chain_spec omitted per brief. Splines require periodic grease service (community-documented maintenance item, not officially scheduled in the maintenance chart retrieved).BMW OM R1150GS/Adv · official
Shaft oil capacity
250 mlApprox. 0.25 l (0.44 Imp pint), filled to the bottom edge of the filler opening. Change interval: every 40,000 km (24,000 miles) or at least every 2 years.BMW Repair Manual R1150GS · official

Spark plugs

Type
Primary: NGK BKR 7 EKC. Secondary: Bosch YR6LDE or NGK DCPR 8 EKCTwin-spark ignition from Dec 2002 on, so the 2003 model year has two spark plugs per cylinder (primary + secondary).BMW OM R1150GS/Adv · official
Gap
0.8 mmWear limit 1.0 mm.BMW OM R1150GS/Adv · official
Quantity
42 cylinders x 2 plugs each (primary + secondary) with twin-spark ignition on Dec 2002-onward production, which covers the 2003 model year.BMW OM R1150GS/Adv · official

Battery

Type
Gel battery, 12V 19Ah, maintenance-freeCharge with electronically controlled charger, limit voltage 14.4V. Do not attempt to jump-start via onboard power socket — fire risk.BMW OM R1150GS/Adv · official

Fuel

Minimum octane
95 RONSuper (premium) unleaded fuel to DIN 51607 standard, minimum octane number 95 RON (approx. 91 AKI/US pump octane). The GS Adventure's engine knock sensor allows some tolerance for lower-grade fuel in an emergency, per third-party moto journalism, but BMW's official spec is 95 RON.BMW OM R1150GS/Adv · official

What breaks first and where.

01

Hall Effect Sensor (HES) failure — no-start / erratic ignition

SeriousCommon

The Hall effect sensor in the alternator/timing area develops cracked wire insulation over time, especially with water ingress, leading to intermittent or total ignition failure. This is one of the most widely documented oilhead boxer failures.

Symptoms

  • Hard starting or no-start
  • No spark
  • Tachometer needle wobble while running
  • Engine dies randomly while riding

Typical failure point64,000 km

Field repairableYes — Replaceable with hand tools by removing the alternator belt cover, alternator, and crankshaft pulley to access the HES; many owners upgrade the wiring/connector with higher temperature-rated wire during replacement.

ADVrider HES Guide
02

Alternator drive belt (Poly-V / ELAST) wear, slip, or failure

ModerateCommon

Early Poly-V alternator belts require periodic re-tensioning and can stretch, slip, or shred over time; BMW introduced a maintenance-free ELAST belt with freewheel pulley starting July 2003 production to address stretching. 2003 GS Adventures built before the mid-2003 changeover still have the Poly-V belt.

Symptoms

  • Charging system / alternator warning
  • Belt squeal
  • Visible belt cracking or rubber transfer on the belt cover
  • Loss of charging at idle or low RPM

Typical failure point60,000 km

Field repairableYes — Poly-V belt requires re-tensioning at 6,000 mile service (8 Nm via special tool) and replacement every 36,000 miles; ELAST belt (July 2003-on) is maintenance-free but still requires replacement every 36,000 miles using a pitch-setting gauge tool.

BMW SIB 12-001-04 · official
03

Integral ABS (Generation I/FTE) servo pump and pressure sensor degradation

SeriousOccasional

The BMW Integral ABS system (optional on this era) uses an electric servo pump/hydro-unit to build brake assist pressure. As these units age, pressure sensors can drift out of tolerance and brushed servo motors can wear, causing the system to fall back into a residual (non-boosted, non-ABS) braking mode that requires significantly more lever/pedal force.

Symptoms

  • ABS/brake warning lights stay lit or flash after startup self-test
  • Substantially increased brake lever/pedal effort
  • Reduced braking power (residual braking function only)
  • Whining noise from servo when pulling the brake lever with ignition on

Field repairableNo — Not generally field-repairable; failed units are typically replaced or the entire Integral ABS/servo system is removed and converted to conventional non-servo brakes/ABS using aftermarket conversion parts, a well-documented but involved workshop procedure.

r/Motorrad ABS Failure
04

Final drive (rear bevel gear housing) spline wear and bearing failure

SeriousOccasional

The single-sided Paralever final drive's input splines (where the driveshaft engages the bevel-gear pinion) and drive-shaft/final-drive splines can wear from inadequate lubrication, leading to play, clunking, or in advanced cases drive failure. Rear wheel bearing and pivot bearing wear are also documented on higher-mileage examples.

Symptoms

  • Clunking or backlash on throttle on/off
  • Play felt when rocking the rear wheel
  • Oil leakage at final drive seals
  • In severe cases, loss of drive

Field repairableYes — Splines can be inspected, cleaned, and re-greased (moly-based spline paste) by dropping the final drive housing from the swingarm; BMW MOA and ADVrider forums note spline failure is less common than seal/bearing wear, though periodic spline lubrication is a widely recommended preventive task not on the official maintenance chart.

BMW MOA Final Drive
05

Clutch splines / input shaft wear

ModerateOccasional

The clutch hub-to-transmission-input-shaft splines can wear due to inadequate or unsuitable grease, leading to play in the drivetrain and eventually shudder or knocking under load.

Symptoms

  • Driveline shudder or clunk on throttle application
  • Clutch drag or slip in advanced wear cases

Field repairableYes — Requires transmission removal to access and re-grease or replace worn splines; forum consensus favors a proper moly-type spline grease over generic copper anti-seize, which has been linked to accelerated wear.

UKGSer Clutch Splines
